Powered by YAMAHA
Power: 2000W - 6000W
Alternator with AVR
Original YAMAHA Engine

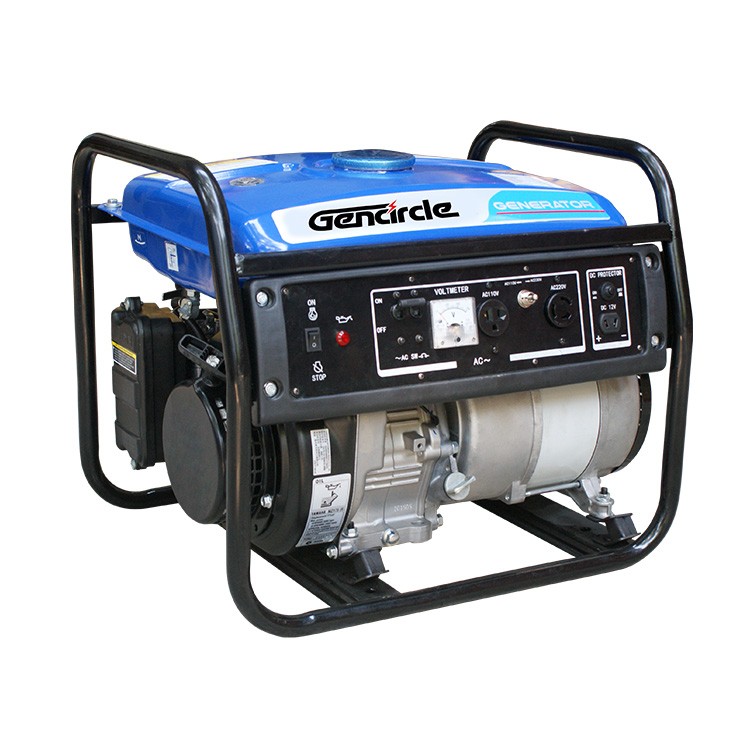

Product description: Original Yamaha Engine Gasoline Generator, Powered by Yamaha, Power from: 2000W - 6000W, Manual Start, Carton packing, Optional Electric start with battery, wheel kit.
■ Neat and economical for classical design.
| MODEL | EF2600 | EF5200 | EF6600 |
| AC Frequency (Hz) | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| AC Output voltage(V) | 110;120;220;230;240; | 110;120;220;230;240; | 110;120;220;230;240; |
| Rated AC Output | 2300W | 4500W | 6000W |
| Max.AC Output | 2600W | 5200W | 6600W |
| Power Factor | 1 | 1 | 1 |
| DC Output | 12V/8.3A (optional) | 12V/8.3A (optional) | 12V/8.3A (optional) |
| Engine | YAMAHA MZ175 | YAMAHA MZ360 | YAMAHA MZ360 |
| Type | Air-Cooled, Four-Stroke, OHV Single Cylinder | Air-Cooled, Four-Stroke, OHV Single Cylinder | Air-Cooled, Four-Stroke, OHV Single Cylinder |
| Displacement(cc) | 171 | 357 | 357 |
| Starting System | Recoil | Recoil | Recoil |
| Lubrication oil | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 |
| Fuel Tank Capacity(l) | 15 | 25 | 25 |
| Continuous Work(h) | 13 | 7.4 | 7.4 |
| Noise Level LwA dB(A) | 68 | 73 | 73 |
| Dim(mm) | 607X460X457 | 713X541X569 | 713X541X569 |
| Gross Weight(kg) | 42 | 85 | 88 |
| 20ft Container Qty | 188 | 136 | 136 |
| 40ft Container Qty | 388 | 280 | 280 |
| Warranty | 3 Years Limited Warranty | 3 Years Limited Warranty | 3 Years Limited Warranty |
